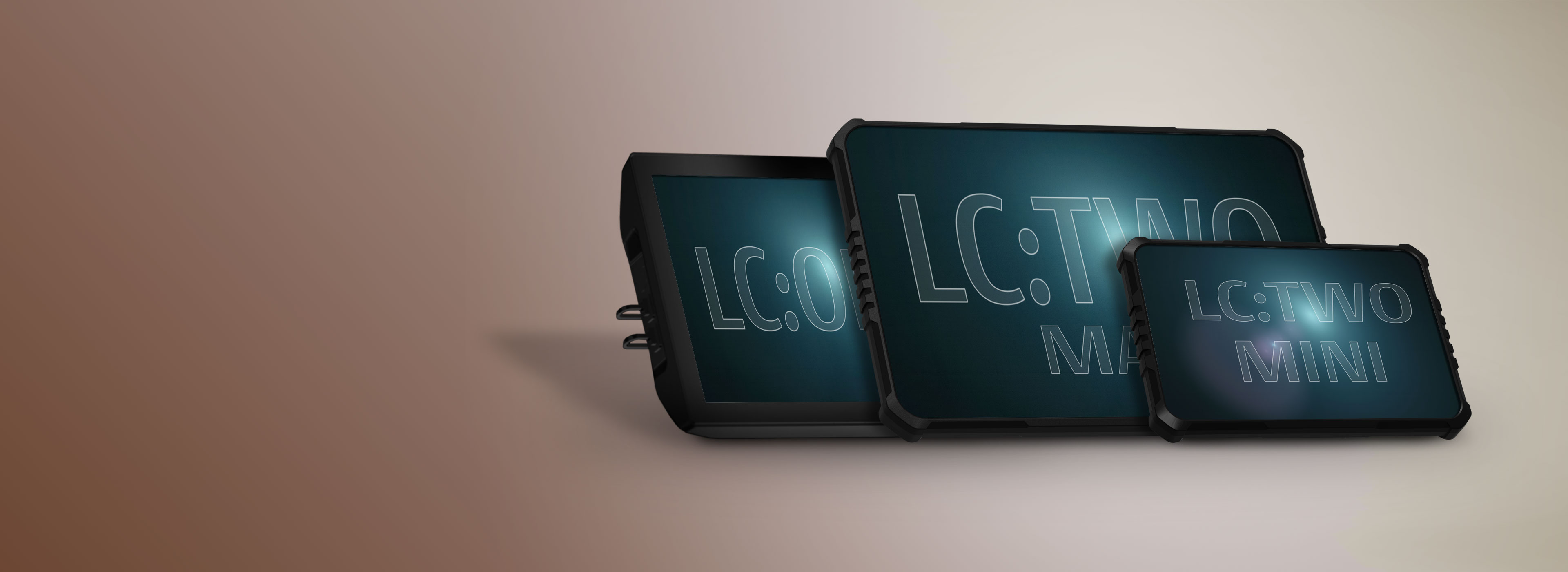

Flexible ISOBUS terminals LC:ONE and LC:TWO for every machine and every application

From entry-level displays to scalable platforms – for OEMs and retrofitting in modern agriculture

The LACOS Group’s ISOBUS terminals offer flexible solutions for machine control and precision farming applications in agriculture. With the introduction of the new LC:TWO terminal generation, the existing portfolio is being expanded to include two additional display sizes. Together with the established LC:ONE, this creates a tiered terminal family with three display sizes that covers different machine types, applications, and requirements—from simple guidance to complex ISOBUS functionalities.

The terminals are based on the proven LC: ISOterminal Suite and enable intuitive operation as well as high compatibility with ISOBUS implements. At the same time, they offer flexible application options for both machine manufacturers (OEMs) and for retrofitting existing machines. The combination of many years of software expertise, in-house hardware development, and optional cloud connectivity via LC:HOME results in integrated solutions for modern agriculture—practice-oriented and designed for real-world requirements in the field.

Comprehensive package of hardware and software | for manufacturer-independent use in a wide variety of agricultural machinery
Open software architecture for maximum flexibility | Integration of third-party software plugins and proprietary modules is possible
OEM-specific customizable user interface | Adaptation to brand identity, operating logic, and machine concepts
Flexible licensing of functions | Individually adaptable to OEM requirements and business models

With LACOS as an experienced provider of expertise in the fields of precision farming, telematics, field planning, and robotics & automation, you receive not only state-of-the-art software and hardware, but also comprehensive process support—from initial consultation and the development of ideas and requirements through implementation to quality control and support. Your machine is the focus, and the components are individually tailored to your specific applications.

Software

ISOBUS

With the ISOBUS feature, all main ISOBUS functions from the Task Controller to the Universal Terminal are supported.

learn more

TC-BAS (Basic ISOBUS Task Controller, TC Version 3)
- ISOXML Import/Export – TASKDATA.xml
TC-SC (Section Control, 8 Booms / 255 Sections)
TC-GEO (Variable Rate Control, Multi Product / Multi Channel)
UT (Universal Terminal) – VT Version 3
AUX-N (Auxiliary Inputs)

Field Operation

The feature Field Operation offers all functions around Guidance.

learn more

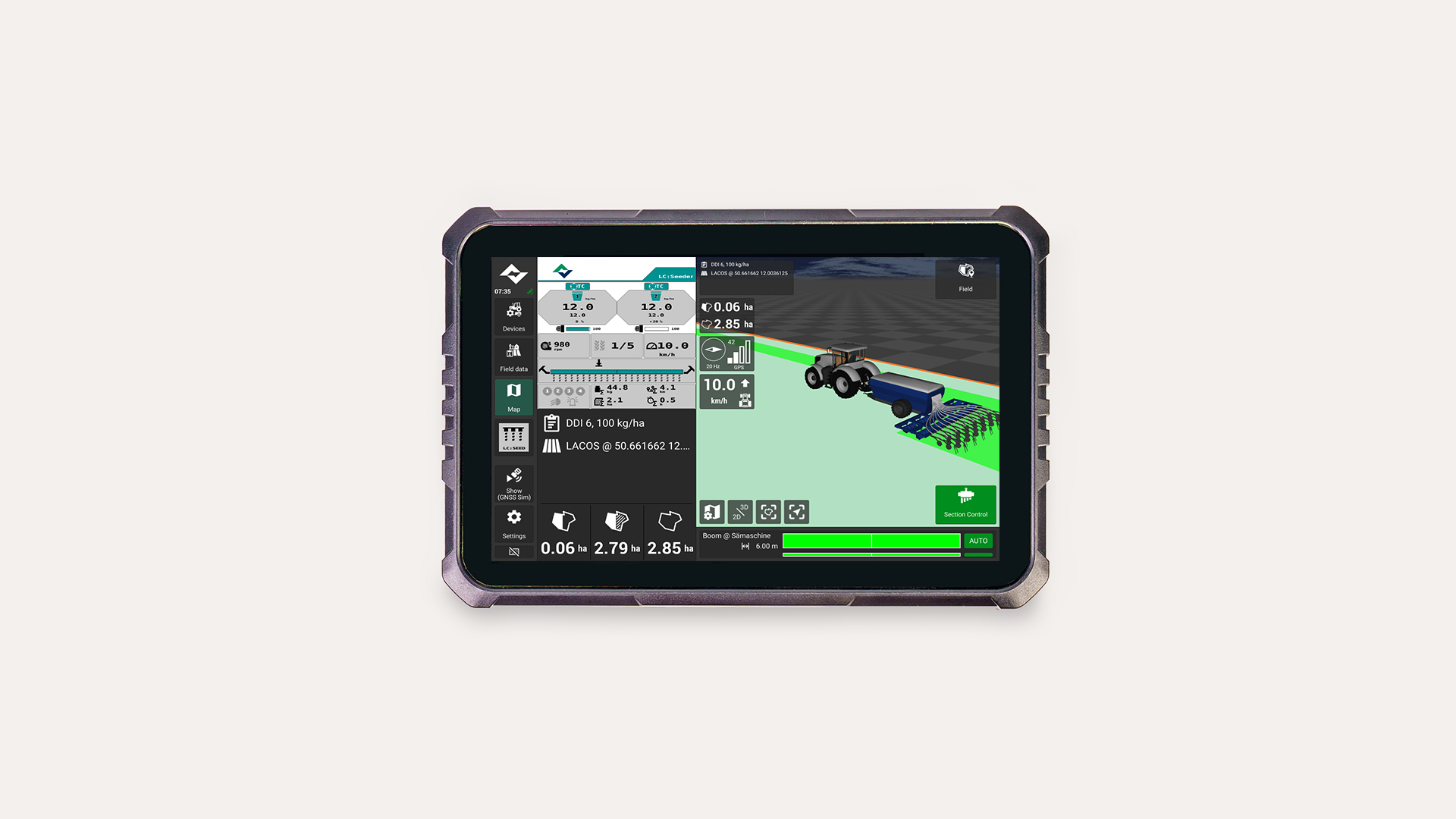

Clear icons, as well as 3D maps and 3D models make the operation easy and intuitive.

Guidance (AB, A+, curve, circle, headland from field boundary, imported pre-planned lanes, e.g. from lane planning)
3D map / 3D model
GNSS via NMEA0183 (serial), NMEA2000 (CAN)
ESRI shapefile import/export – field boundary, guidance lane, setpoint map, etc.

OEM-Customisation

The ISOBUS terminals offer plenty of scope for individualization and adaptation to customer requirements.

learn more

Customizable: colors, fonts, icons, translations, scalable & responsive user interface (QML)

Software modules

ISOBUS TC-BAS

The ISOBUS TC-BAS ISO-XML module enables basic ISOBUS task processing and data exchange based on ISO-XML.

Ausführlicher Text (Kopie 5)

Ausführlicher Text für nähere Informationen muss hier eingefügt werden. Dieses Modul liegt im Hintergrund, wird aber benötigt damit das obere Kästchen auf der Website angezeigt wird. Es kann später mit Hilfe eines Links im ersten Feld angezeigt werden.

ISOBUS SC Basic

The ISOBUS SC Basic module supports GNSS-controlled switching on and off of up to 16 boom sections or individual nozzles.

(Kopie 20)

ISOBUS SC Medium

The ISOBUS SC Basic module supports GNSS-controlled switching on and off of up to 120 boom sections or individual nozzles.

(Kopie 22)

ISOBUS SC Advanced

The ISOBUS SC Advanced module supports GNSS-controlled switching on and off of boom sections or individual nozzles. Section Control Advanced can control up to 8 booms with 255 sections or individual nozzles each.

(Kopie 24)

Tramline control

The Tramline-Control module activates automatic tramline control.

Ausführlicher Text (Kopie 4)

Ausführlicher Text für nähere Informationen muss hier eingefügt werden. Dieses Modul liegt im Hintergrund, wird aber benötigt damit das obere Kästchen auf der Website angezeigt wird. Es kann später mit Hilfe eines Links im ersten Feld angezeigt werden.

Spot spraying

The spot spraying module activates the spot spraying function for field sprayers.

(Kopie 7)

ISOBUS TC-GEO Variable R.

The ISOBUS TC-GEO module supports prescription maps in shape or ISO-XML format. These maps can specify location-specific target values for the implements.

(Kopie 11)

Navigation and Guidance

The Navigation & Guidance module supports manual parallel driving (A-B, A+, contours, headland mode).

(Kopie 13)

Autosteering

The Autosteering module activates automatic steering.

Ausführlicher Text

Ausführlicher Text für nähere Informationen muss hier eingefügt werden. Dieses Modul liegt im Hintergrund, wird aber benötigt damit das obere Kästchen auf der Website angezeigt wird. Es kann später mit Hilfe eines Links im ersten Feld angezeigt werden.

Software Insights

Smart precision farming software with a wide range of ISOBUS-compatible applications and features

Would you like more information about our ISOBUS terminals?

Please visit our Downloads section and download the latest brochure and the terminals' data sheets.

To the downloads

Hardware Insights

Flexible display sizes – 7“, 10”, and 12" for various applications

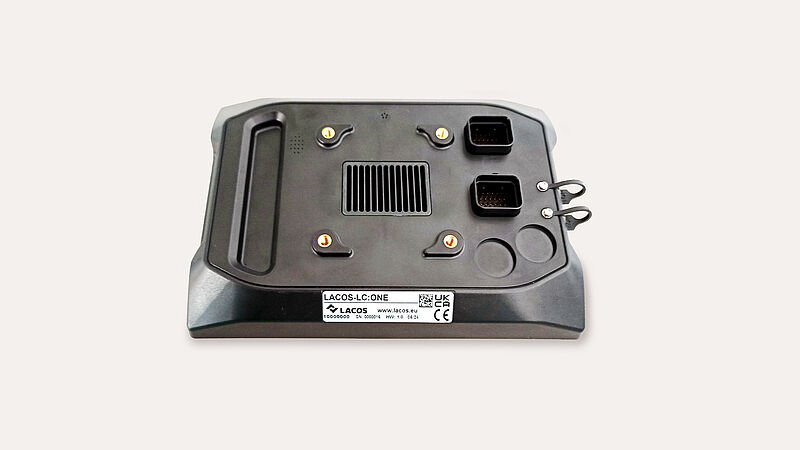

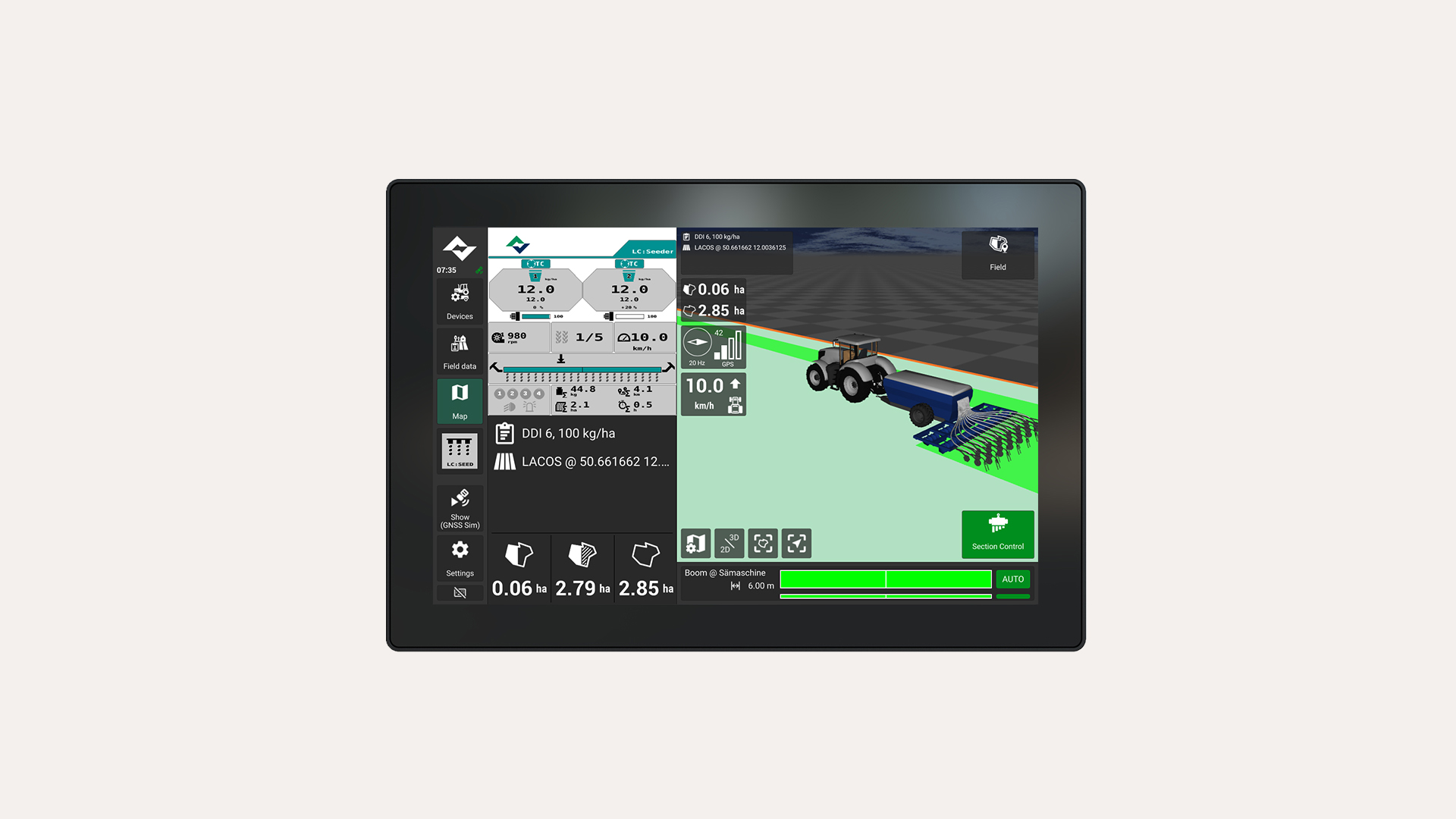

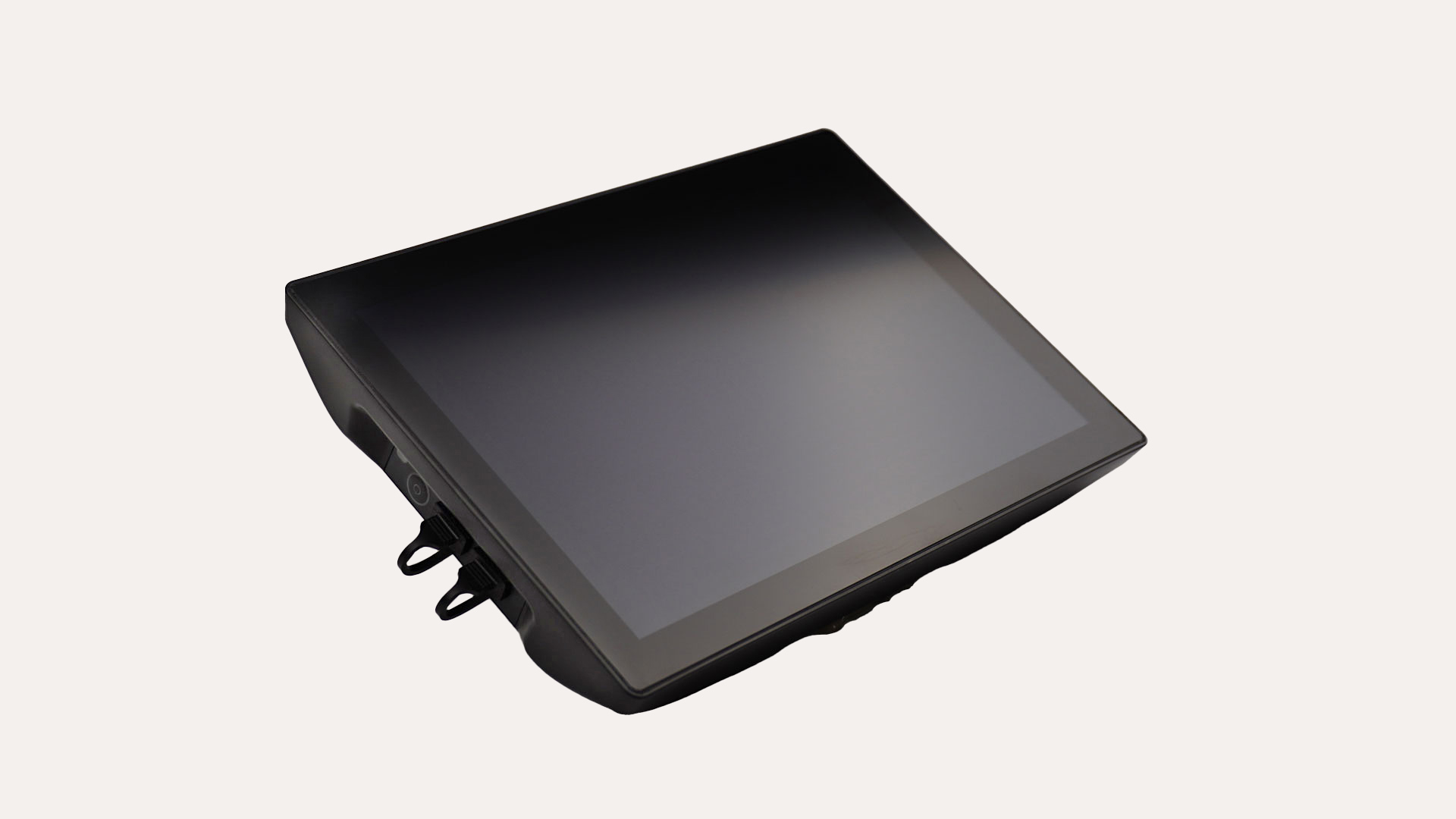

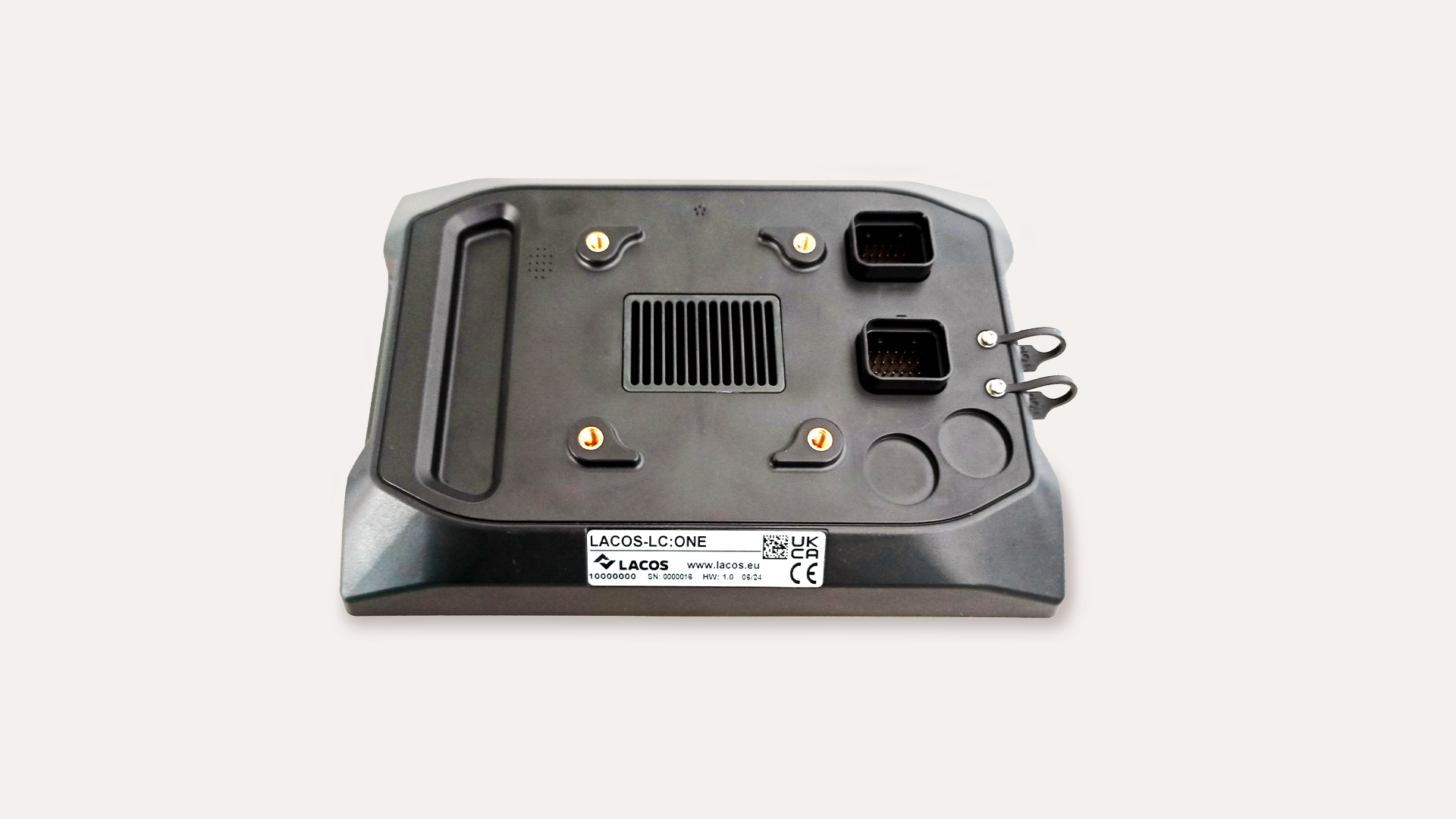

LC:ONE

System | CPU: i.MX8M Plus quad-core CPU at 1600 MHz with Linux operating system, ROM: 32 GB, 2 GB RAM
Display | Color/touch display: Optically bonded IPS display with capacitive multitouch, dimmable up to 1000 cd/m²

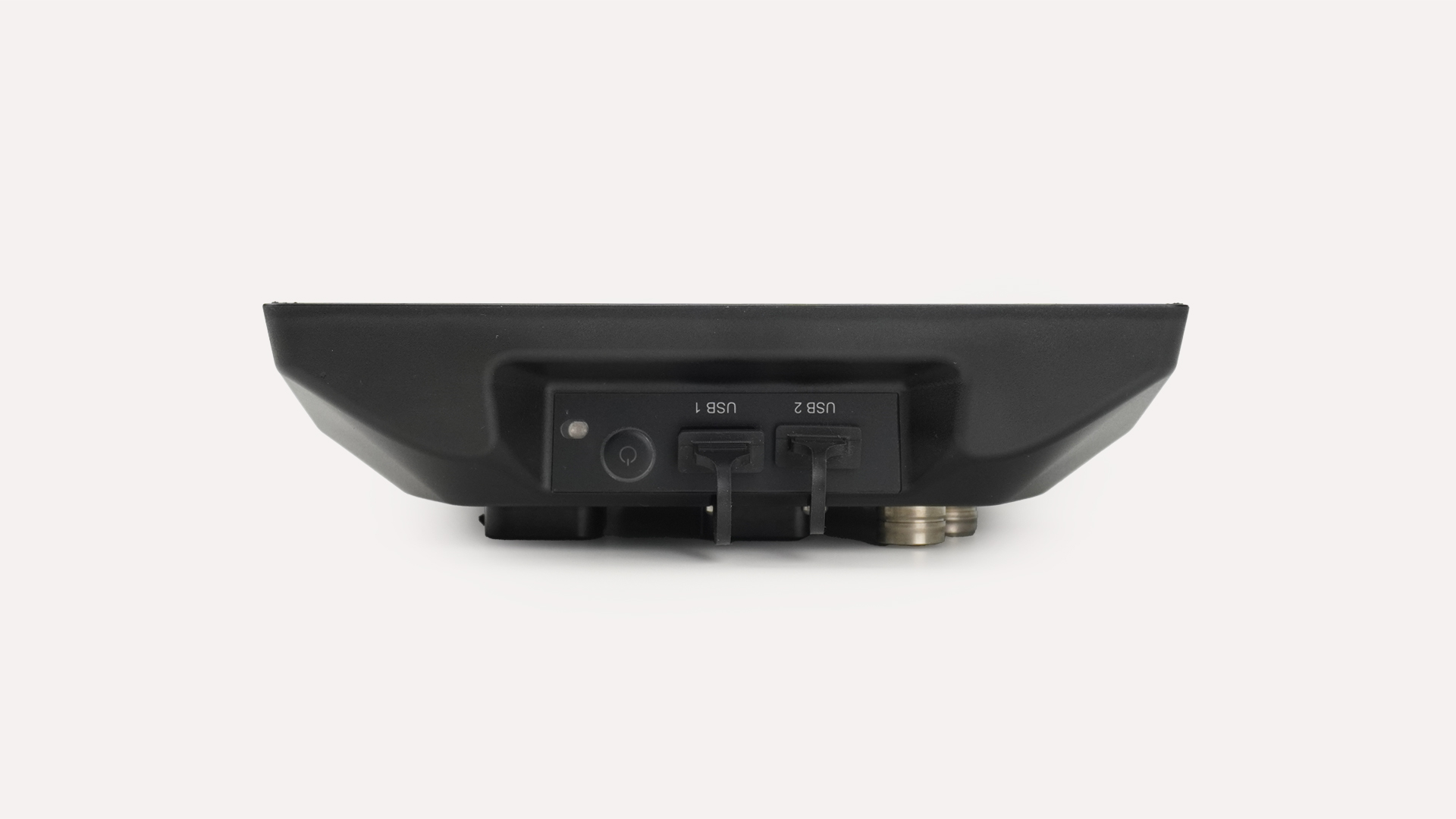

Communication | Multiple connectors: 2x CAN, 2x RS232, 2x video (analog), 1x RS485, SIGNAL, speaker, USB: 2x USB full-speed host
Supply voltage and power consumption | 8 to 36 V, depending on connected peripherals
Protection class and temperature range | IP65, -20° to 70° C
One-handed operation | Ergonomic housing shaped for the operator’s hand

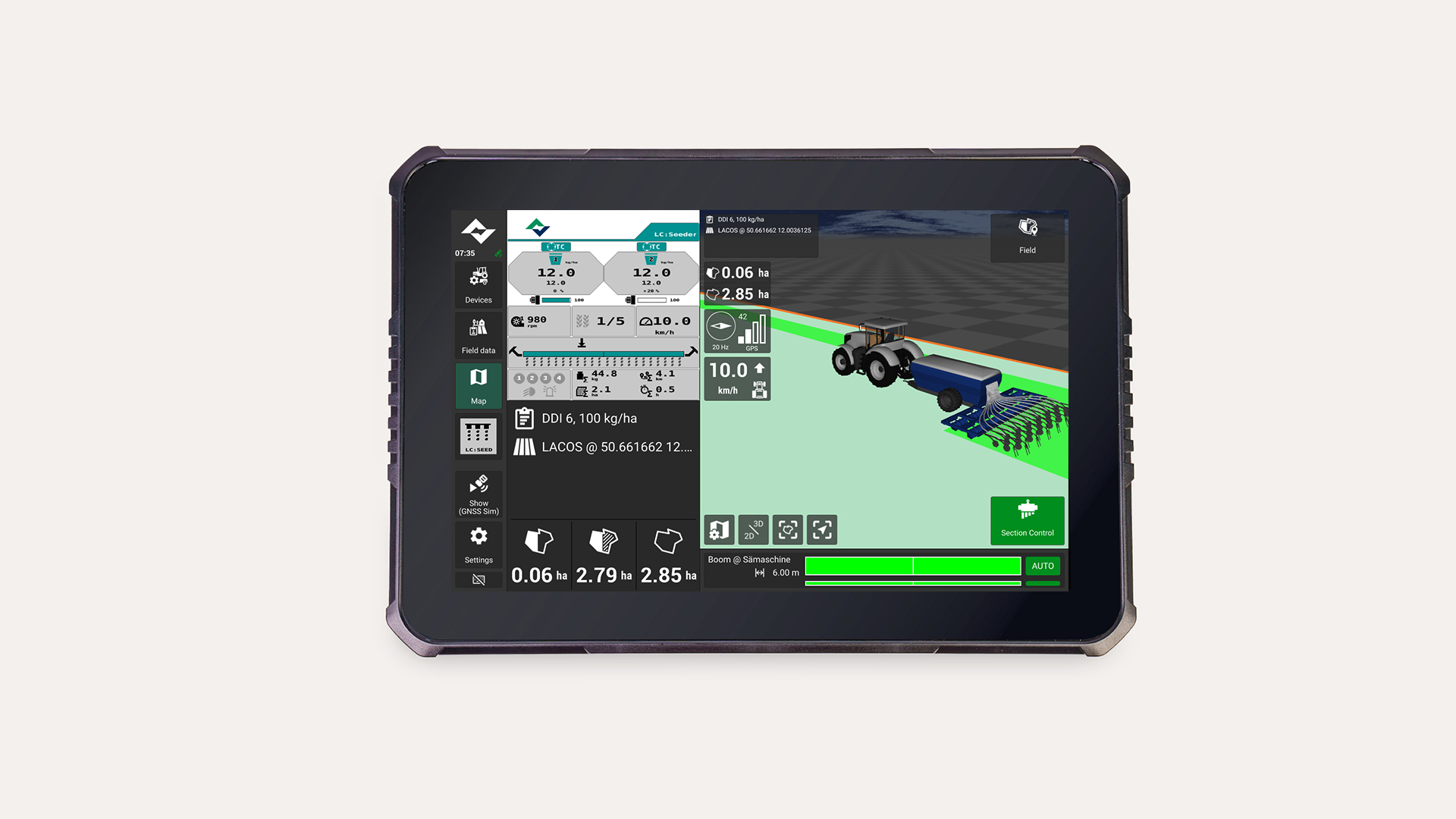

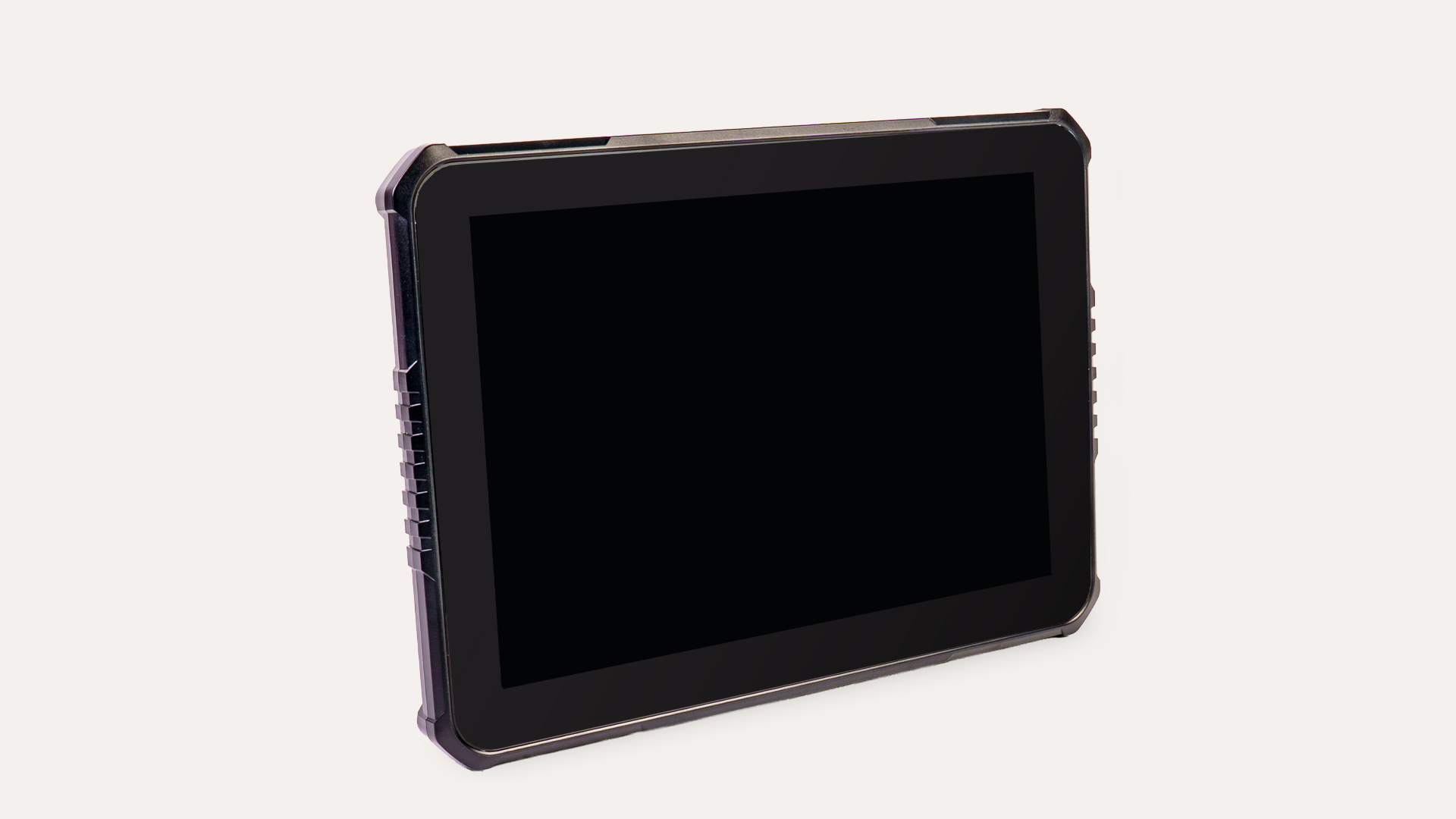

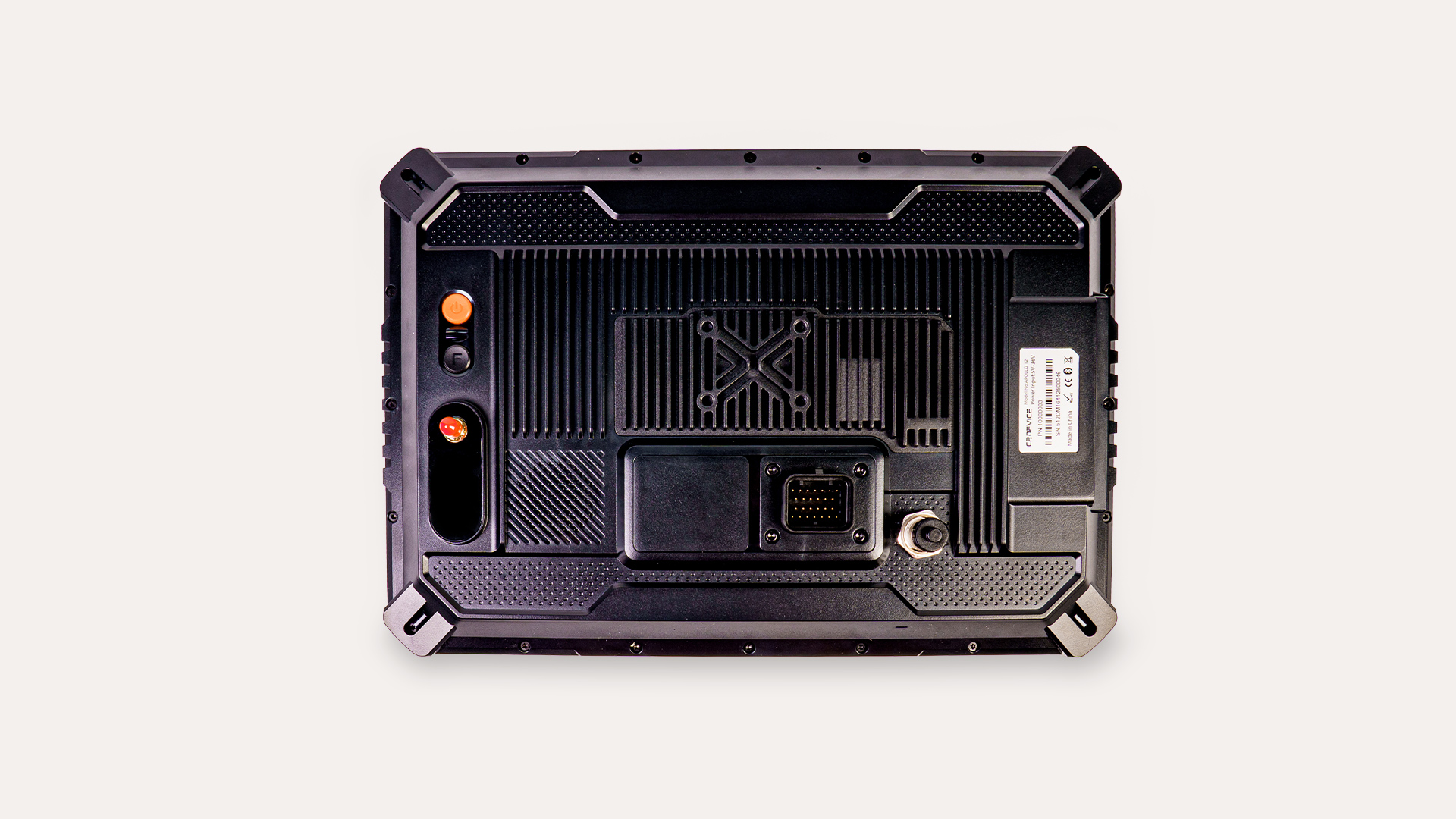

LC:TWO-max

System | Processor: Quad-core, Cortex-A55, 2.0 GHz, Operating System: Linux, Qt, ROM: 32 GB, 4 GB RAM
Display | 12-inch capacitive touchscreen, anti-glare display, Resolution: 1280 x 800 px, Brightness: 750 cd/m²
Communication | 4G, 2.4 GHz/5 GHz Wi-Fi, Bluetooth 4.2, CAN x3, RS232, USB 3.0 x1, Gigabit Ethernet x1

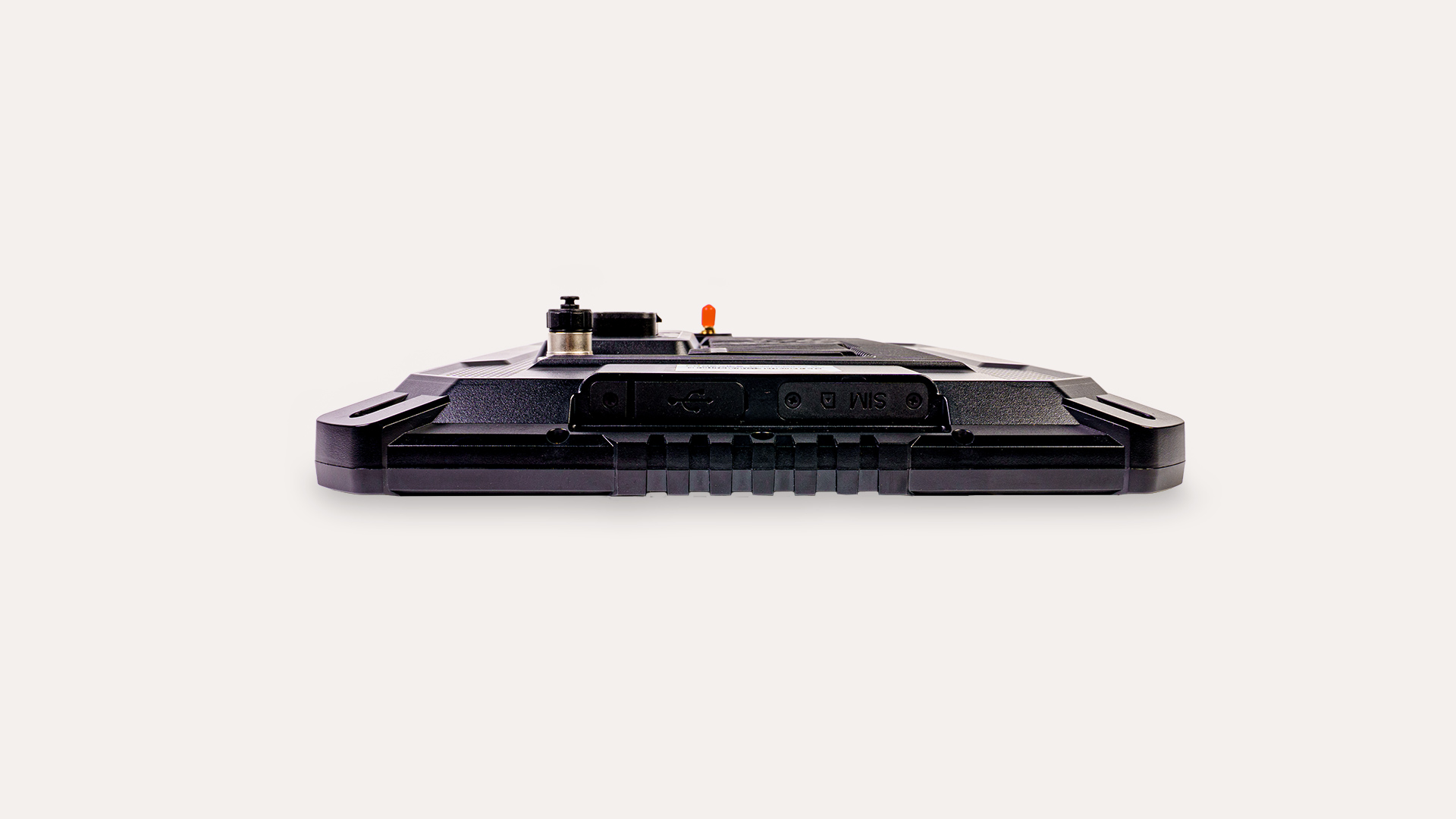

Connectors | 26-pin connector x1, M12-X-code circular connector x1, SMA connector x1, USB 3.0 x1
Power supply | Power input: 5–36 V DC, ignition detection in ACC state
Protection class and temperature range | IP67, -30° to 70°

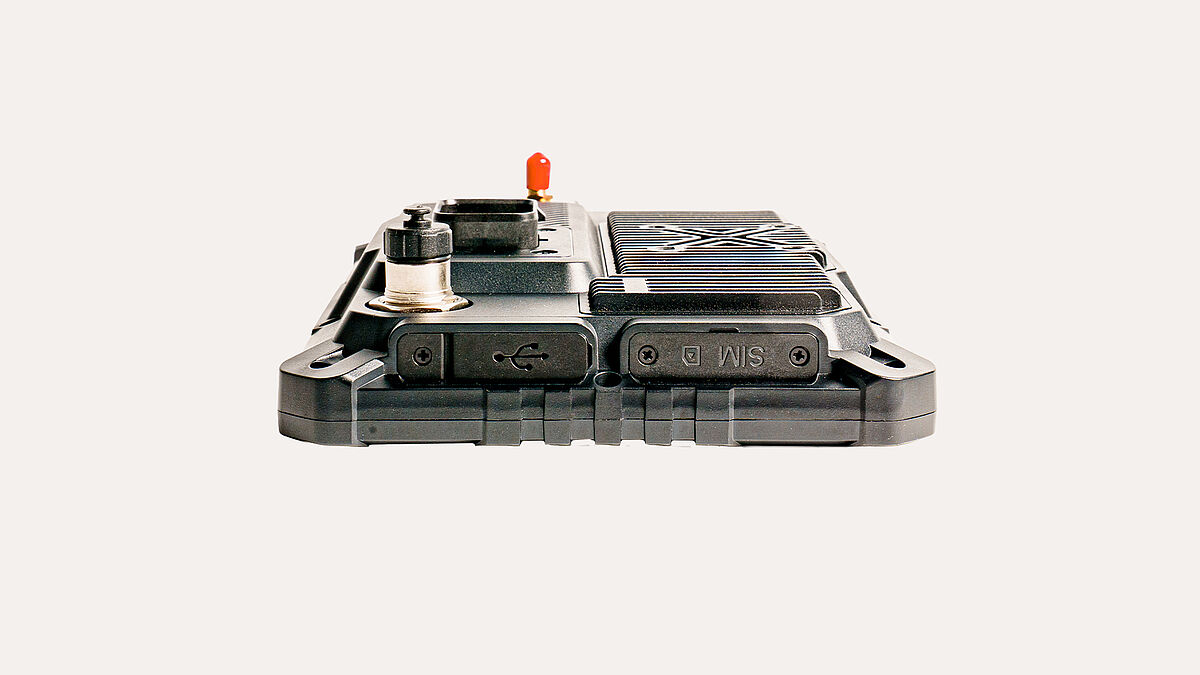

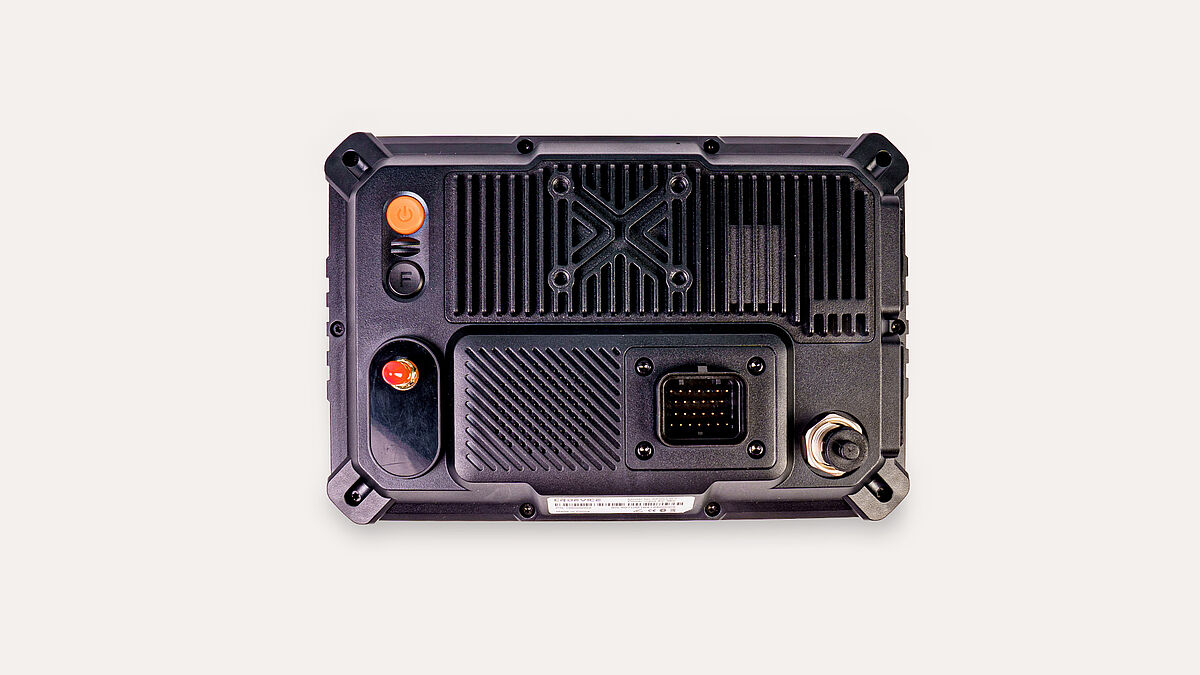

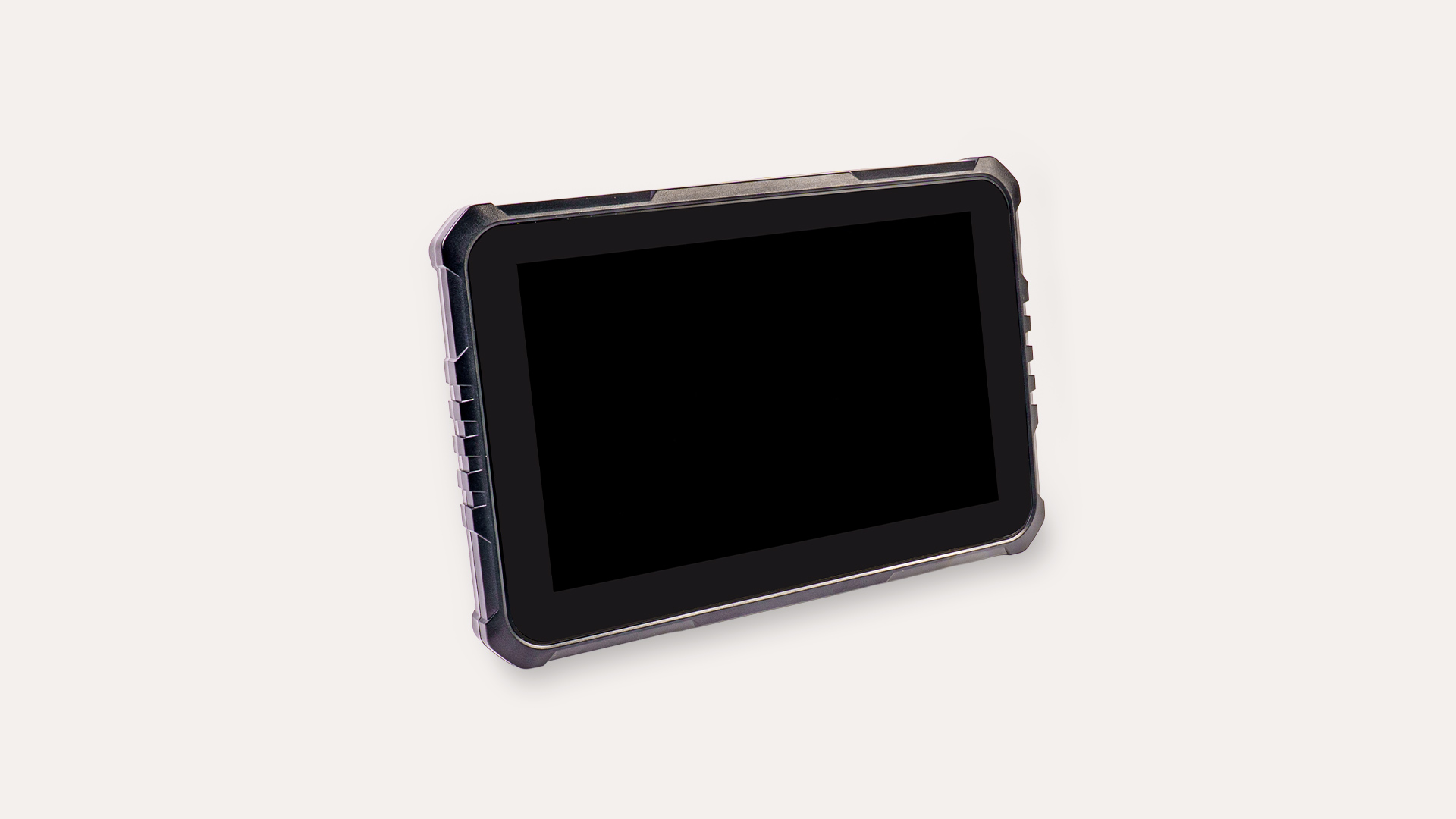

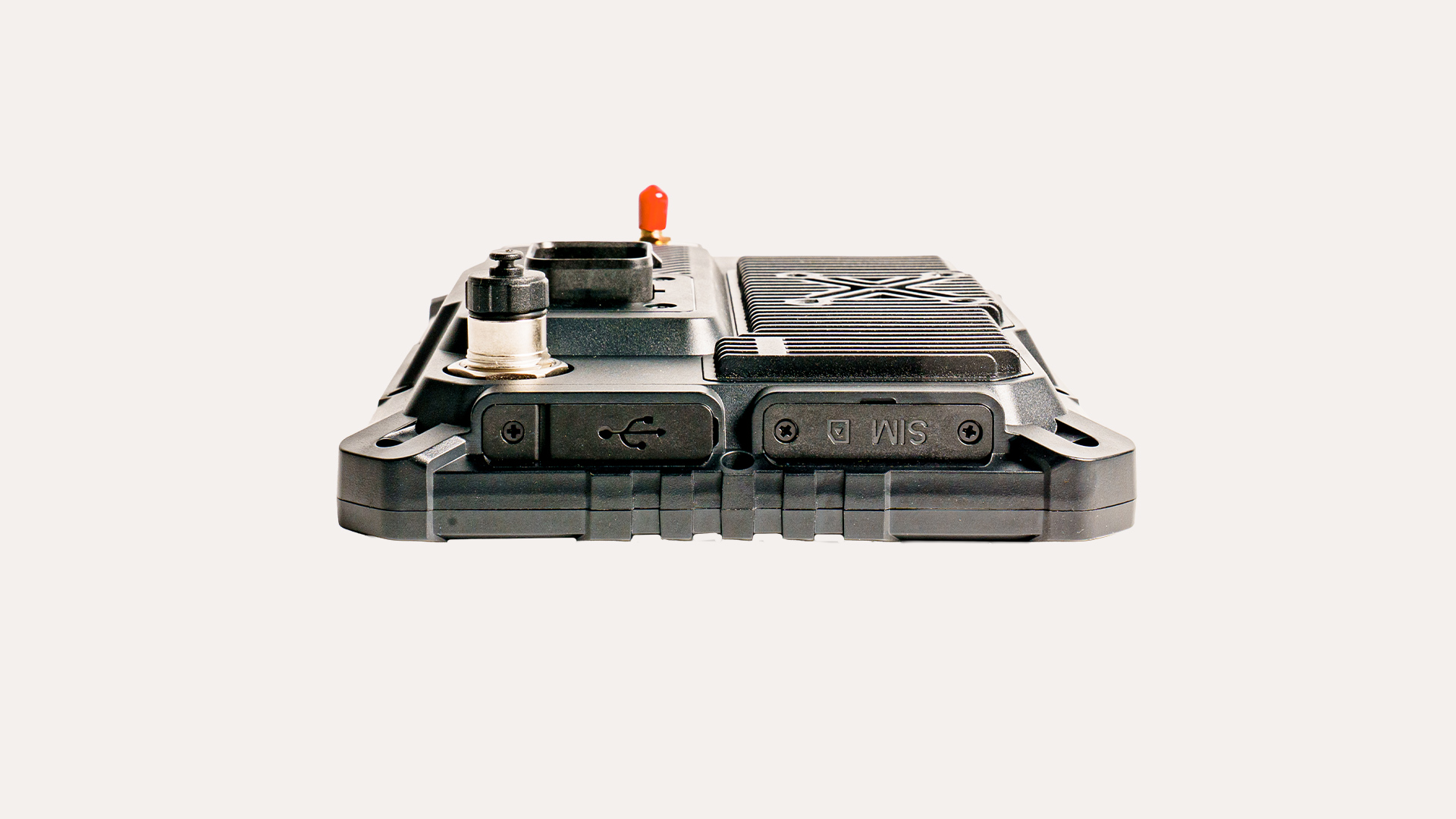

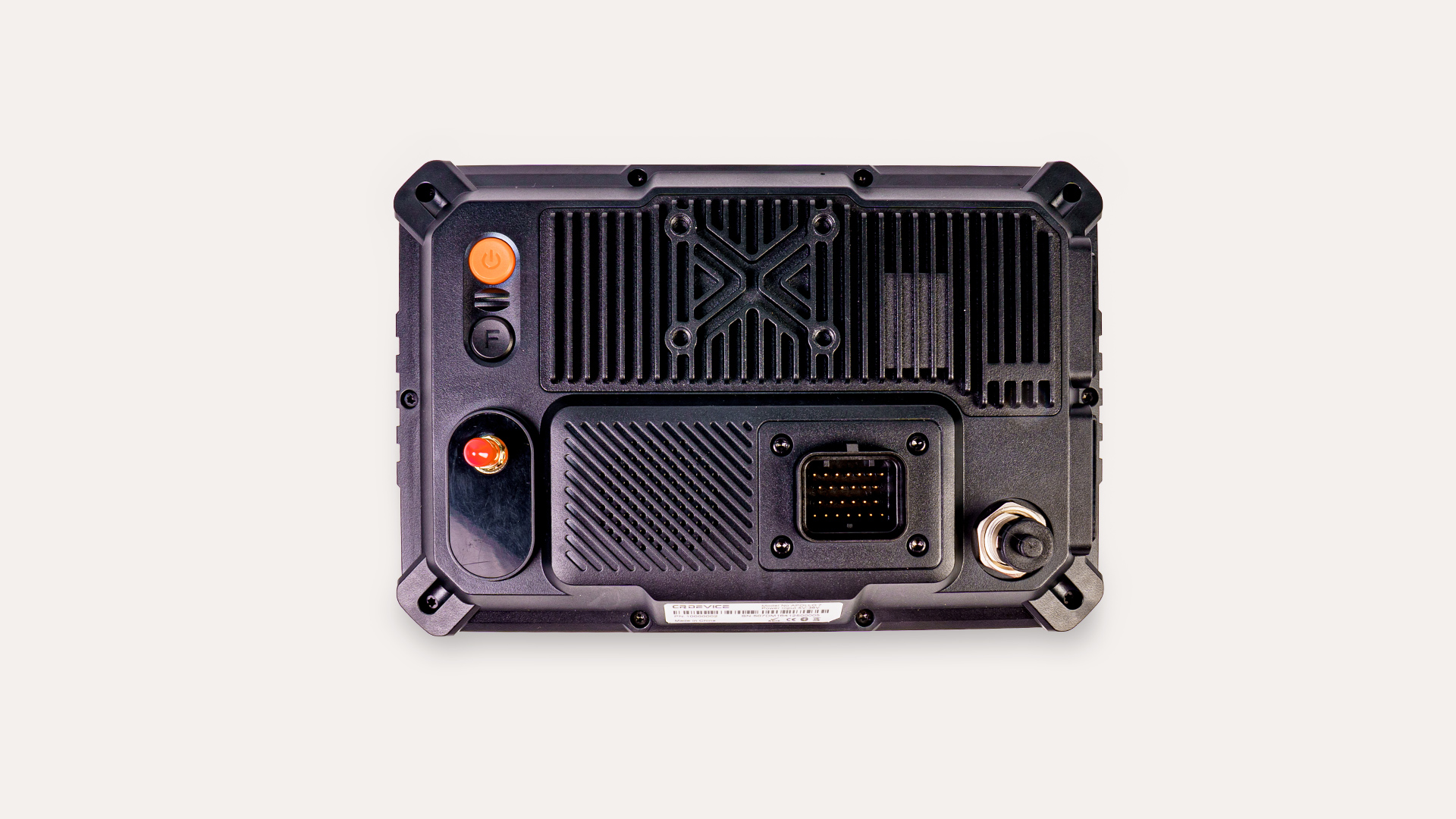

LC:TWO-mini

System | Processor: Quad-core, Cortex-A55, 2.0 GHz, Operating System: Linux, Qt, ROM: 32 GB, 4 GB RAM
Display | 7-inch capacitive touchscreen, anti-glare display, Resolution: 1024 x 600 px, Brightness: 750 cd/m²
Communication | 4G, 2.4 GHz/5 GHz Wi-Fi, Bluetooth 4.2, CAN x3, RS232, USB 3.0 x1, Gigabit Ethernet x1
Connectors | 26-pin connector x1, M12-X-code circular connector x1, SMA connector x1, USB 3.0 x1
Power supply | Power input: 5–36 V DC, ignition detection in ACC state
Protection class and temperature range | IP67, -30° to 70°
